4activeC2-GVT
global vehicle target
(Euro NCAP)
We started to develop the standard mid-size soft-car target in 2016 and it has
been continually developed, and brought to perfection, in close collaboration with
Euro NCAP.

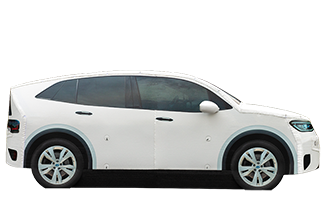

This 4activeC2-GVT distinguishes itself with its light weight and the easy re-attachment
via hook and loop system onto our FB-small and FB-large platforms. In
addition, thanks to its robust design it withstands many impacts unscathed.
After crashing the target is ready to use within minutes due to its simplicity and
small number of parts. Another astounding feature is its standalone option. Due to
its construction, it stills provides stability and robustness without being supported
by a platform. Therefore, it can also be used as an excellent static target.
The 4activeC2-GVT is available in different colors and can also be obtained with
a light kit.
key features
- approved by Euro NCAP for the 2020 protocols
- designed for efficient testing - 2 minutes build time.
- extremely lightweight and soft structure
- realistic response for Radar-, LiDAR, Camera and IR-Systems
- aerodynamically stable for higher speed testing
- optional active lighting features (ECE R48)
Performance
-
mono/stereo camera system, LiDAR sensors
-
360° - Radar characteristic
-
near infrared
-
ultrasonic
-
crash speed lateral≤ 60 km/h
-
crash speed lateral≤ 72 km/h*
-
operation speed≤ 35 km/h
*at ELK oncoming with 10% overlap
Dimensions
-
hoverall lenght4060 mm
-
overall height1430 mm
-
overall width1800 mm
-
trie diameter600 mm
-
wheelbase2560 mm
-
weight< 80 kg
complies with
- EURO NCAP TEST PROTOCOL - AEB Car-to-Car systems 2023
- EURO NCAP TEST PROTOCOL - Lane Support systems 2023
- EURO NCAP TEST PROTOCOL - Assisted Driving 2024
- ANCAP TEST PROTOCOL - AEB Car-to-Car systems 2023
- ANCAP TEST PROTOCOL - Lane Support systems 2023
- C-NCAP TEST PROTOCOL - Lane Support systems 2024
- JNCAP
- KNCAP
- ASEAN NCAP
- U.S. NCAP
- Latin NCAP
- IIHS
- RCAR
- UNECE R131
- UNECE R152
- UNECE R157
- ISO 19206-3
contact
Feel free to reach out to our team of experts and request a quotation or define your requirements with our customizer.
