FMVSS 127 AEB Testing Overview

FMVSS No. 127 is a new safety regulation issued by the U.S. National Highway Traffic Safety Administration (NHTSA) that mandates the inclusion of Automatic Emergency Braking (AEB) systems in all new passenger cars and light trucks under 10,000 lbs by September 1, 2029. The regulation also requires Pedestrian AEB (PAEB) and Forward Collision Warning (FCW) systems to be standard features. These systems must detect and respond to imminent collisions with both vehicles and pedestrians, including in daylight and nighttime conditions.

The regulation is part of the U.S. Department of Transportation’s National Roadway Safety Strategy and is expected to save at least 360 lives annually and prevent 24,000 injuries.

Timeline and Compliance Requirements

Compared to UN Regulation (UNECE) R152 and Euro NCAP protocols, FMVSS 127 introduces higher speed thresholds, mandatory no-contact performance, and standardized warning signals.

Effective Date of Final Rule: March 20, 2025 (delayed from November 2024)
Compliance Deadline:

September 1, 2029

for most manufacturers

September 1, 2030

for small-volume and specialty manufacturers

Supported Scenarios

FMVSS 127 defines specific test scenarios to validate AEB system performance:

leading vehicle test

pedestrian tests

false activation tests

These scenarios are tested under various lighting conditions, including nighttime with low and high beams, and require no-contact performance.

Common Misconception: Test Speeds vs. Platform Speeds

FMVSS 127 specifies that AEB systems must function at vehicle speeds up to 145 km/h for Forward Collision Warning (FCW) and AEB scenarios. This often leads to a misunderstanding: the test platform does not need to reach 145 km/h.

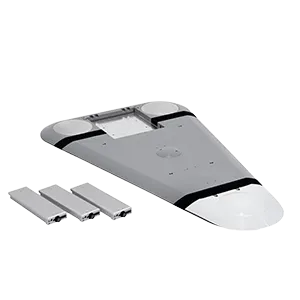

Instead, the subject vehicle – the car being tested – operates at these speeds. Robotic platforms like 4activeFB-large or 4activeFB-small only need to match the relative speeds required for target movement (e.g., lead vehicle or pedestrian scenarios), which are significantly lower. This ensures realistic and safe testing without unnecessary platform speed capabilities.

How 4activeSystems Products Fulfill FMVSS 127

4activeSystems offers a comprehensive suite of test platforms and dummies that fully support FMVSS 127 scenarios:

Why Heated or Thermally Activated Dummies Matter for AEB Development

While FMVSS 127 does not require heated dummies for compliance testing, they play a critical role in advanced sensor validation. Thermal or infrared cameras are increasingly used by OEMs to improve nighttime pedestrian detection, where fatality rates are three times higher than in daylight. Heated dummies replicate realistic thermal signatures, enabling engineers to benchmark sensor performance under challenging low-light conditions. This helps identify limitations in current ADAS systems and supports development toward future standards, including potential ISO revisions that may incorporate thermal requirements. OEMs investing in thermal validation today gain a competitive edge for upcoming global protocols.

Sensor Technology Recommendations

To meet FMVSS 127’s stringent requirements—especially for nighttime pedestrian detection—manufacturers rely on sensor fusion. Each technology offers unique strengths and limitations:

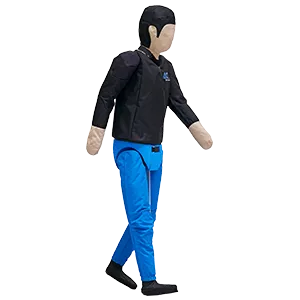

Thermal imaging has proven to outperform conventional systems in nighttime PAEB tests. Heated pedestrian dummies from 4activeSystems simulate realistic thermal signatures for accurate sensor validation.
